Key Takeaways:

  • Enhance comfort levels by customizing temperature settings for different areas in your home, ensuring each space is perfectly climate-controlled.
  • Significantly reduce energy bills by targeting heating and cooling to specific zones, avoiding the waste of conditioning unoccupied or less-used areas.
  • Put an end to the common household “thermostat wars” by allowing individual temperature control in different zones, catering to the unique preferences of family members or occupants.
  • Optimize the efficiency of your HVAC system by matching its output with the specific needs of each zone, leading to improved overall performance and longevity of the system.
  • Take advantage of advanced HVAC zoning technology to easily manage and adjust settings for each zone, either manually or through smart home systems, for ultimate convenience and energy savings.
  • Enjoy a more peaceful and harmonious living environment as zoning reduces noise from constant HVAC operation, providing a quieter and more comfortable home atmosphere.
  • Increase the value of your home with an advanced HVAC zoning system, making it more attractive to potential buyers who value both comfort and energy efficiency.


Stepping into the world of an HVAC zoning system might just be the game-changer your home needs. It’s all about customizing your comfort and slashing those energy bills.

Immersing yourself in this manual, you’ll unravel the mechanisms behind HVAC zoning, ensuring every corner of your abode is perfectly temperate to your liking at just the right moments.

We’ll break down the nuts and bolts of an HVAC zoning system—from motor-driven dampers to control panels—and why getting it right matters for both warmth and wallet.

Plus, insights on picking the right equipment will make sure you’re set up for success. With the expertise and support from professionals in HVAC, like those at Bellows Service, you’re not just investing in an efficient system but also in the long-term comfort and energy savings of your home.

Let’s make sense of HVAC zoning together.

Understanding HVAC Zoning Systems

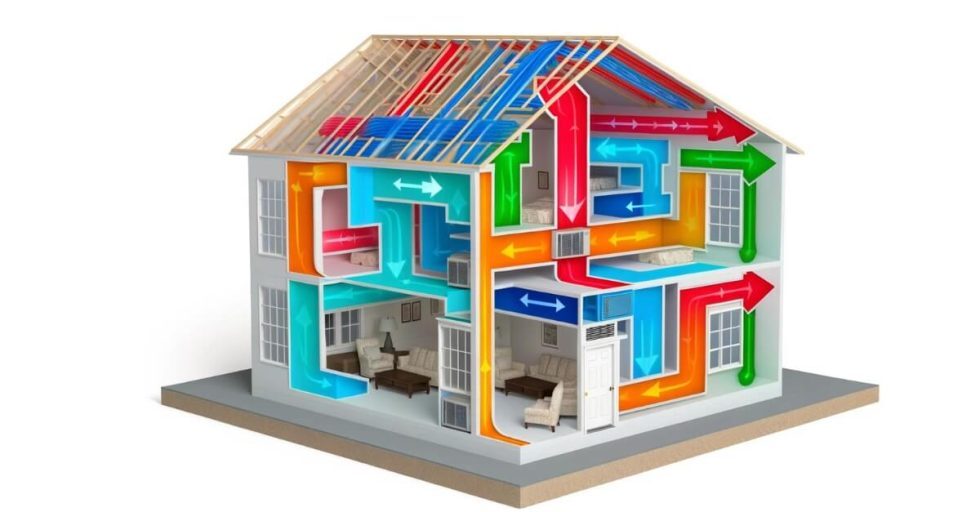

What is a Zoned HVAC System?

A zoned HVAC system allows for different temperature zones within your home, providing both comfort and efficiency. Unlike traditional systems that treat the entire house as one big zone, this approach uses HVAC zoning to manage multiple areas independently. Imagine being able to keep your bedroom cool at night without freezing out everyone in the living room watching TV – that’s what zoning does.

Zoned heating and cooling systems use motor-driven dampers in the ductwork to regulate airflow. These dampers open or close based on commands from the control panel, directly affecting each zone’s temperature. Through this approach, each family member can relish in their own preferred climate without any disputes arising over the thermostat adjustments.

Key Components of a Zoning System

The heart of any HVAC zoning system lies in its components: motor-driven dampers, a damper control panel, and individual thermostats for monitoring temperatures across zones. The beauty here is how these parts work together seamlessly to give you control over where and when your home heats up or cools down.

To make sure everything operates smoothly, these components must be correctly matched with your current HVAC setup – whether it be an air conditioning unit or a heat pump-based system. Properly designed zoning equipment avoids common pitfalls like unnecessary bypass ducts which can compromise efficiency and comfort.

In essence, installing an HVAC zoning solution isn’t just about adding fancy tech to your home. It’s about smartly integrating advanced controls with existing infrastructure for optimal performance – allowing two or more zones to thrive under a single harmonious system.

What Are The Benefits of Installing an HVAC Zoning System?

Imagine living in a home where every room is always at your ideal temperature. That’s the magic of an HVAC zoning system. This setup divides your house into different zones, each controlled independently for ultimate comfort and efficiency.

Energy Efficiency Galore

Zoned systems are champions when it comes to energy savings. By heating or cooling only the areas you use, they reduce unnecessary energy use by 20% to 40%. It’s like having a personal thermostat for each zone, ensuring you’re not wasting money heating empty rooms.

This targeted approach means your HVAC doesn’t have to work as hard, which can extend its lifespan too. Plus, with advancements in technology, adding zoning to your current system has never been easier or more cost-effective.

Customized Comfort Across Your Home

Different family members often prefer different temperatures. With customized temperature zones provided by a zoned system, everyone wins because they can adjust their own space without affecting anyone else’s comfort levels.

Beyond personal preferences, these systems consider how sunlight affects certain areas and compensate accordingly throughout the day—keeping every corner just right all year round. At its core, zoning your HVAC system doesn’t only offer immediate perks but also plays a crucial role in achieving enduring environmental sustainability objectives.

The Cost Analysis of HVAC Zoning Systems

When considering an upgrade to your home’s heating and cooling, installing a zoning system is akin to giving each room its personalized thermostat. Yet, many homeowners hesitate at the initial cost without weighing it against the potential long-term savings.

The upfront investment for adding zoning to your current HVAC system typically ranges between $2,000 and $3,300. This variance depends largely on how many zones you plan to establish. But don’t let sticker shock deter you; the efficiency gains can be substantial over time.

Zoned systems allow for customized temperature control across different areas in your home. For example, unoccupied rooms can remain at more moderate temperatures while living spaces are kept cozy or cool as per individual preferences.

The result is you’re not spending money heating or cooling air where it’s not needed—leading to significant energy savings that could reduce your bills by 20% to 40%. Think of it this way: would you leave all the lights in your house on if no one was using them?

Design Considerations for Efficient HVAC Zoning Systems

Importance of Multi-Stage Systems

When it comes to zoning systems, not all HVAC units are created equal. In zoned setups, single-stage units frequently cause fluctuations in temperature and wastefulness due to their all-or-nothing operational mode. This is because they operate at full blast or not at all.

On the other hand, multi-stage or variable-speed systems adjust their output based on the actual demand from different zones. This adaptability makes them better suited for efficient zoning as they can provide just the right amount of heating or cooling needed per zone. The result is more consistent temperatures and energy use reduced by 20% to 40%.

Avoiding Bypass Ducts

Bypass ducts were once thought to be a solution for balancing air pressure within zoned HVAC systems. Yet, experts have grown skeptical of this method, recognizing its limitations and the negative impact it has on system efficiency and zone comfort.

Bypass ducts can create scenarios where heated or cooled air is simply recirculated back into the system rather than being delivered where it’s needed most. This leads not only to energy waste but also to potential comfort issues across different zones.

The consensus now leans towards designing zoned systems without bypass ducts whenever possible; focusing instead on proper damper control and ensuring that each part of your home receives exactly what it needs in terms of airflow – no more, no less.

Choosing the Right Equipment for Your Zoned System

Finding the perfect gear to set up your HVAC zoning system is like piecing together a puzzle. You need all the right pieces, from zone dampers to programmable thermostats, for everything to work smoothly.

Zone Dampers and Motor-Driven Dampers

Starting our discussion, we’re diving into the world of zone dampers. These are crucial because they control airflow in different areas of your home.

Think of them as traffic cops directing where heating or cooling should go. Then we have motor-driven dampers which take it up a notch by automatically adjusting based on temperature needs. Through this automated process, every room reaches the perfect warmth or coolness efficiently, preventing unnecessary strain on your HVAC system and conserving energy.

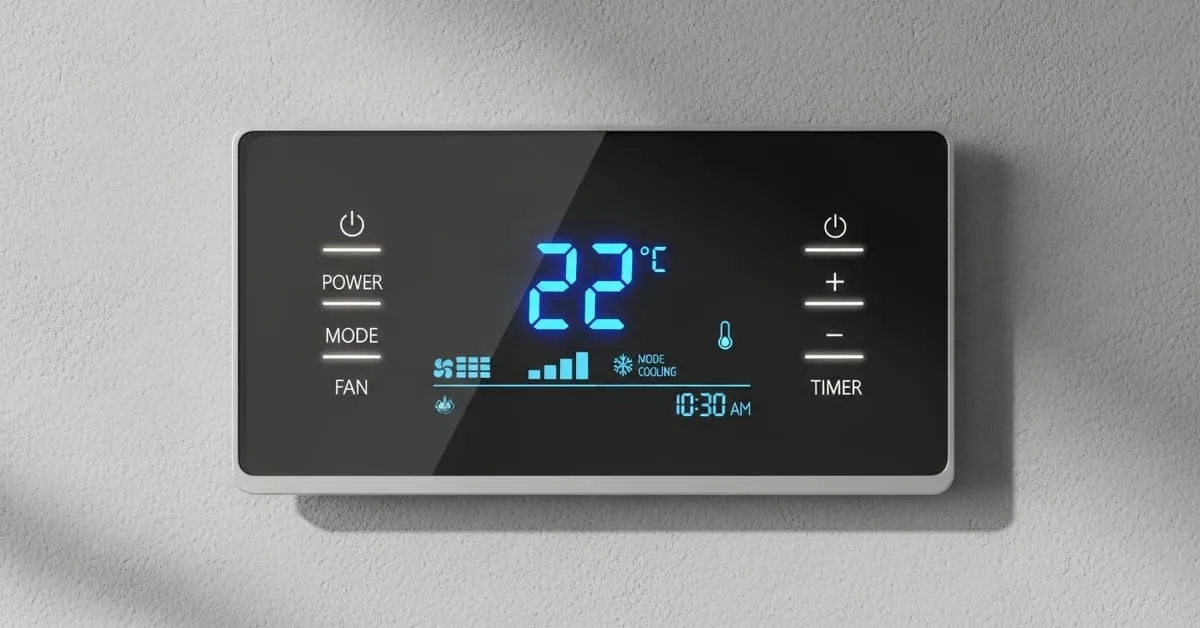

Programmable Thermostats: The Brain Behind Comfort

The next piece of equipment you can’t overlook is programmable thermostats. They’re not just any thermostats; they allow you to preset temperatures for various times throughout the day.

This means waking up to a warm bedroom while keeping unoccupied areas cooler and vice versa during summer months with cooling air instead of extra heat where it’s not needed.

In essence, choosing suitable zoning equipment isn’t just about comfort but also about maximizing efficiency and reducing unnecessary energy consumption—making sure every penny towards heating or cooling counts.

Installation Process Insights

Finding the right HVAC professional is crucial when you’re ready to take your home’s comfort to the next level with zoning. Adding a zoning system transforms not merely the devices within your home but elevates the very essence of living in it. A skilled HVAC contractor will not only help install but also design a system that fits seamlessly with your existing setup.

When supplementing an existing system, it’s important to understand what additional equipment might be necessary. This could range from motor-driven dampers for directing airflow into different zones, to advanced programmable thermostats that give you control over each area’s temperature settings. The goal here is precision – achieving the desired climate in every corner of your house without unnecessary energy expenditure.

Replacing an entire HVAC unit isn’t always required when installing zoning systems, but sometimes it’s advisable, especially if your current setup struggles with efficiency or capacity issues. Here lies another reason why choosing a qualified installer like Bellows Service matters; they can assess whether integrating zone controls into your current HVAC makes sense or if starting fresh is more cost-effective in the long run.

The installation process itself involves careful planning and execution. Technicians must accurately measure airflow and pressure, calculate the best duct sizes for efficient zoning, and check for leaks to prevent conditioned air loss. They should also aim to minimize disruption in living areas during the installation process.

Is an HVAC Zoning System Right for You?

Wondering if your home could use a bit more comfort and efficiency? Perhaps contemplating the integration of zoning into your current HVAC configuration could usher in enhanced comfort and operational efficiency. In the ever-changing climate of San Francisco, the power to adjust your home’s warmth or coolness in distinct areas offers a transformative comfort level.

Zoned heating and cooling systems let you customize temperature settings for each zone or area in your home. This means no more fighting over the thermostat. Family members can enjoy their own preferred climate without affecting others.

Plus, zoned systems are smart—they work with single-zone or ductless HVAC setups alike, adjusting airflow and maintaining the desired temperature effortlessly.

Understanding Your Home’s Needs

The first step is figuring out if installing ductwork for zoning makes sense for you. Consider factors like extra heat in sun-soaked rooms or cold air pooling in basements. If certain areas get too hot or too cool compared to the rest of the house, zoning might just be what you need.

Moving air efficiently throughout large homes or multi-story buildings often requires sophisticated solutions like motor-driven dampers which open fully only where needed—reducing energy waste significantly.

The Nuts and Bolts: Costs vs Savings

An initial investment is required when supplementing existing systems with new controls and equipment but think about this: properly designed zones could slash your energy bills by up to 40%. While costs vary depending on how many zones you add (ranging from $2,000-$3,300), the savings over time make it worth considering.

For those looking into efficient design practices, bypassing traditional methods that lead to uneven heating/cooling is key; instead, opt for advanced solutions ensuring every corner of your space feels just right.

HVAC Zoning Systems: The Bottom Line

Wrapping up, and diving into an HVAC zoning system unlocks custom comfort and cost savings. It’s clear: motor-driven dampers and smart thermostats aren’t just parts; they’re your ticket to a finely tuned climate at home.

Remember this: energy efficiency isn’t a myth. With the right setup, you can slash bills by 20% to 40%. And yes, that initial investment might seem steep, but the long-term savings speak volumes.

So here’s what sticks: choosing quality components matters. Bypass ducts? Skip them for better airflow control. Thinking multi-stage systems make sense for smoother operation.

The last bit of advice is don’t go it alone. A skilled HVAC pro is worth their weight in gold when installing or upgrading to a zoned system. Give Bellows Service a call today to learn more.
