Understanding Residential Ductwork Systems

Your bedroom stays comfortable all day, but your home office feels like an icebox no matter how you adjust the thermostat. Sound familiar? You’re not alone—and the problem probably isn’t your furnace or air conditioner. It’s the hidden network of ducts behind your walls and above your ceilings working against you instead of for you.

Residential ductwork is a network of metal or flexible tubes that transport heated and cooled air from your HVAC equipment to every room in your home. This system consists of supply ducts that deliver conditioned air and return ducts that bring air back for reconditioning. When it works properly, you barely notice it exists. When it doesn’t, you’re literally paying to heat or cool air that never reaches where you need it—money disappearing into your attic while your complete HVAC system works overtime.

What Is Residential Ductwork in Your HVAC System?

Think of your HVAC system like your body. The thermostat acts as the brain, sending signals when temperatures need adjustment. Your furnace or air conditioner functions as the heart, creating conditioned air. And your ductwork? Those are the arteries and veins that deliver that comfort to every room and bring stale air back for reconditioning.

This network consists of two distinct pathways. Supply ducts work like arteries, carrying freshly heated or cooled air from your equipment to living spaces through vents and registers. Return ducts function like veins, pulling air back to your system for filtering and temperature adjustment. This cycle happens continuously, circulating thousands of cubic feet of air through your home every single day.

Most ductwork hides in attics, basements, crawl spaces, or between walls and floors. You probably never see it until something goes wrong—which is exactly why understanding how it works matters so much for your comfort, your family’s health, and your monthly energy bills.

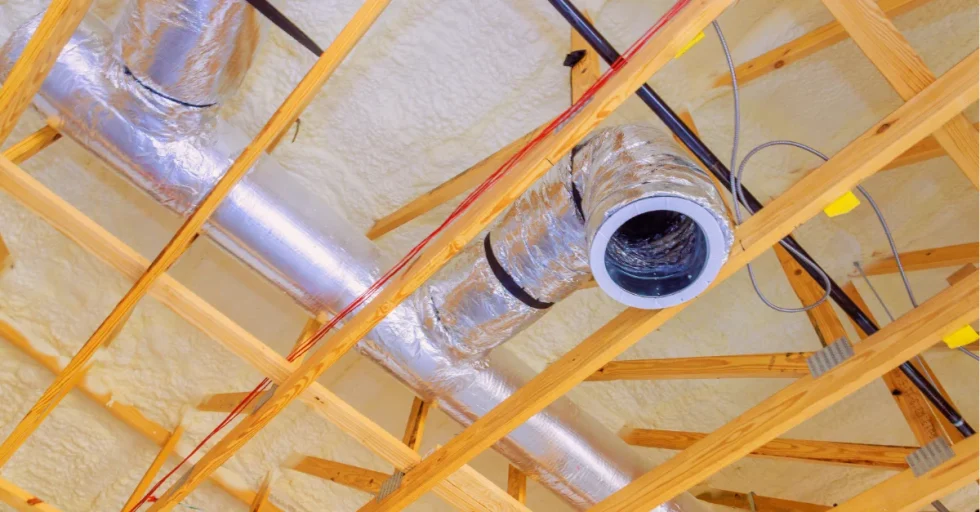

How Ductwork Actually Moves Air Through Your Home

When you adjust your thermostat, you trigger a sophisticated process that most people take for granted. The thermostat signals your HVAC system to kick on. Immediately, return ducts start pulling air from your rooms through return vents, usually located on walls or ceilings.

This air follows a carefully orchestrated path through your system:

• Filtration: Air passes through filters that trap dust, pet dander, pollen, and other particles before reaching your furnace or air handler.
• Conditioning: Inside the unit, air gets heated or cooled depending on your thermostat settings.
• Distribution: A blower fan pushes this newly conditioned air into the supply plenum—a large chamber connected directly to your equipment.
• Delivery: From the plenum, air flows into the main trunk line, distributing to smaller branch ducts that lead to individual rooms.
• Return cycle: As fresh air fills your rooms, it displaces existing air that naturally gravitates back toward return vents to start the cycle again.

Here’s what most homeowners don’t realize: According to the National Comfort Institute, the average residential duct system operates at only 57 percent efficiency. That means nearly half the air your HVAC system produces never actually reaches your living spaces. It leaks out through gaps, holes, and poor connections along the way. You’re paying full price for heating and cooling that’s literally disappearing into your attic or crawl space before it ever reaches your family. Regular professional duct cleaning and maintenance can help restore some of that lost efficiency.

Types of Ductwork Materials: Choosing What’s Right for Your Home

Not all ductwork performs equally, and understanding the differences can save you thousands of dollars over the life of your system. The material your ducts are made from significantly impacts efficiency, durability, and your long-term costs. When you know what’s actually running through your walls and attic, you can make informed decisions about repairs, replacements, and upgrades that protect your investment.

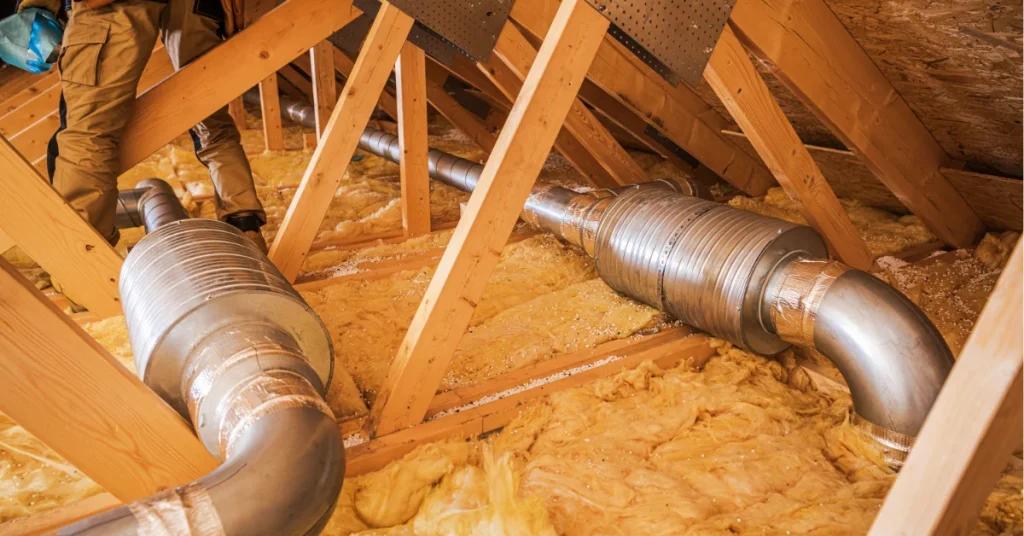

Sheet Metal Ductwork

Walk into any professionally installed HVAC system and you’ll likely find sheet metal ducts forming the backbone. Fabricated from galvanized steel or aluminum, these represent the gold standard for residential installations.

The galvanized steel variety comes with a zinc coating that prevents rust and can last 20 years or more with proper maintenance. The smooth interior surfaces allow air to flow freely without the resistance that plagues other materials. These non-porous surfaces also resist mold growth, making sheet metal the healthiest choice for indoor air quality.

The tradeoffs? Sheet metal costs more upfront and requires skilled installation. The metal itself doesn’t insulate, so ducts running through unconditioned spaces need external insulation wrapping. Installation takes longer since sections must be custom-fitted, connected, and sealed meticulously. But here’s the truth most contractors won’t emphasize: these initial investments pay dividends through decades of reliable performance and lower energy bills. When you’re making a 20-year decision, choosing quality materials now protects your home comfort and budget for the long term.

Flexible Ductwork

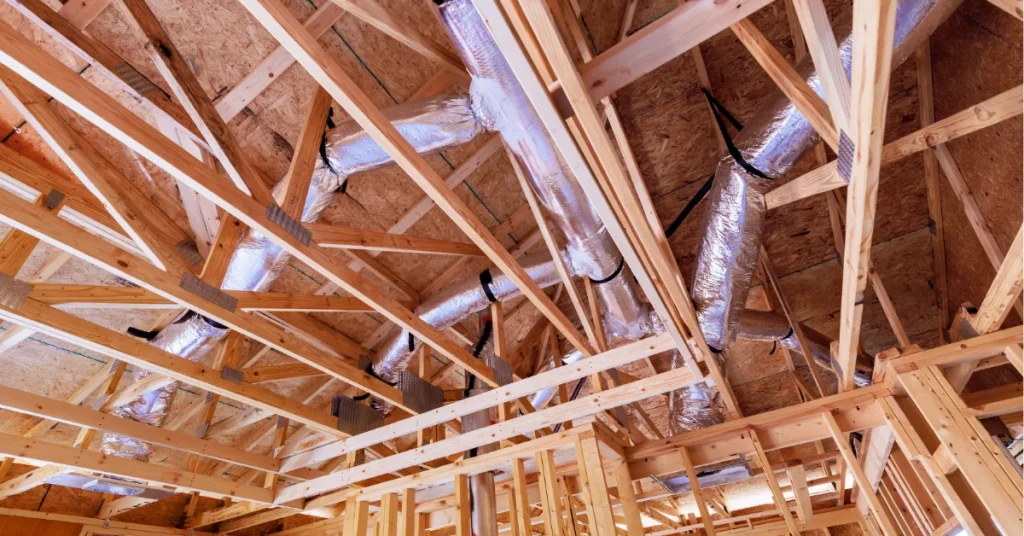

Open most attics in Northern California and you’ll spot flexible ducts branching off from rigid trunk lines. These consist of a wire coil covered in polymer plastic and wrapped in insulation—creating a lightweight, bendable tube that can route around obstacles and through tight spaces where rigid ducts won’t fit.

Flexible ductwork shines in specific applications. Short runs connecting supply trunk lines to individual room registers work perfectly with flex duct. The material costs less than sheet metal and installs faster when used appropriately. However, and this is crucial, flexible ductwork demands careful installation.

The ribbed interior creates more air resistance than smooth metal. Installers must pull flex ducts completely taut, avoiding any sagging, kinking, or compression. According to the Air Conditioning Contractors of America, even a 10 percent reduction in duct diameter can decrease airflow by nearly 40 percent. Your system compensates by running longer cycles, driving up energy costs.

Many Northern California homes built during the 2000s housing boom used excessive flexible ductwork to cut construction costs. These systems often struggle with efficiency issues today, especially when flex ducts were left too long, allowed to sag, or inadequately supported.

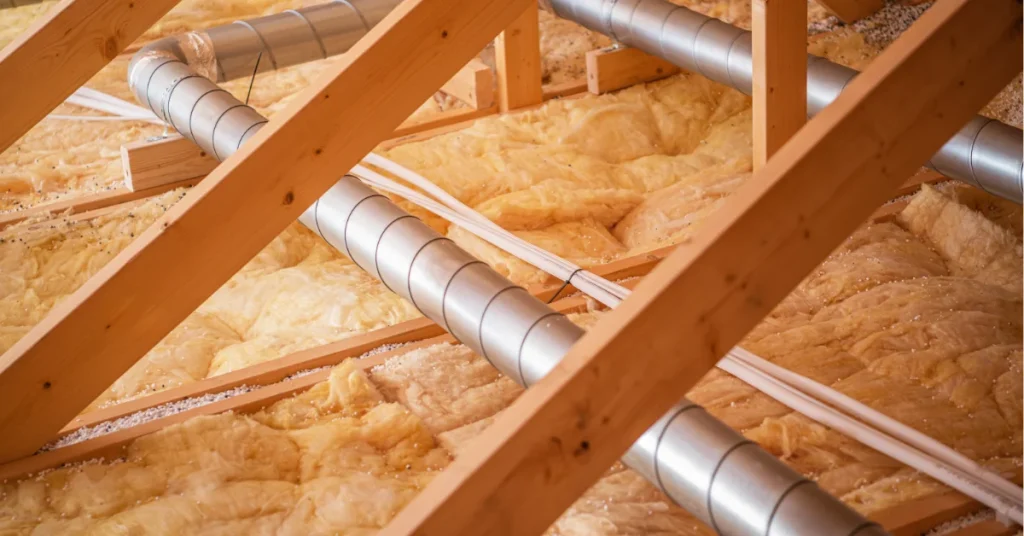

Fiberglass Options

Some duct systems combine materials to achieve specific goals. Fiberglass-lined ducts start with sheet metal but add an interior fiberglass coating for insulation and sound dampening. Fiberboard ducts go further, constructing entire sections from compressed fiberglass particles bonded with resin and faced with foil.

Both arrive pre-insulated and cost less than sheet metal alternatives. The rough interior texture naturally absorbs sound, creating quieter operation. However, these same surfaces trap more dust and debris than smooth metal, requiring more frequent cleaning. Moisture exposure can cause deterioration or mold growth, and the fiberglass itself can break down over time.

Most residential applications in Northern California’s dry climate work better with sheet metal for main runs and limited use of flexible ductwork for branch connections.

Why Properly Sized Ductwork Changes Everything

Here’s a number that should concern every homeowner: improperly sized ductwork is one of the most common problems in residential HVAC systems. When contractors skip proper sizing calculations to save time or underbid competitors, you’re the one who pays the price through uncomfortable rooms, sky-high energy bills, and HVAC equipment that fails years before it should. The worst part? You might not even realize the problem exists until you’ve wasted thousands on unnecessary repairs or premature system replacements.

Manual J vs Manual D: The Two Standards That Determine Your Comfort

Ductwork sizing isn’t guesswork or a one-size-fits-all formula. It requires precise calculations using two industry standards that work together like a diagnosis and prescription. Professional contractors use California residential HVAC code requirements including Manual J and Manual D standards to ensure optimal system design.

Unfortunately, many contractors skip these calculations to save time and underbid competitors. They might simply reuse existing ductwork during equipment replacements or make educated guesses based on square footage alone. The consequences create the comfort and efficiency problems plaguing countless homes—problems that cost you money every single month in wasted energy.

The Real Cost of Wrong-Sized Ductwork

Undersized ductwork creates a bottleneck effect that costs you money every day. Your HVAC equipment generates plenty of conditioned air, but narrow ducts can’t deliver it fast enough. Air velocity increases dramatically, creating whistling or whooshing sounds at registers. The system runs constantly trying to satisfy the thermostat, never quite achieving comfortable temperatures in every room. Your equipment works harder than it was designed to, leading to premature wear and expensive breakdowns that could have been avoided with proper sizing from the start.

Oversized ductwork creates different but equally expensive problems. Air velocity drops too low, causing conditioned air to slow down and lose temperature before reaching rooms. The system short-cycles, turning on and off frequently without running long enough to properly dehumidify in summer. You get that clammy, uncomfortable feeling even when temperatures technically reach your thermostat setting. Your family stays uncomfortable while your energy bills stay high.

According to the U.S. Department of Energy, properly sized and sealed ductwork can reduce HVAC energy consumption by 20 to 30 percent. For a typical Northern California home spending 200 dollars monthly on heating and cooling, that translates to 40 to 60 dollars in monthly savings—480 to 720 dollars annually. Over 20 years, proper ductwork sizing can save between 9,600 and 14,400 dollars. That’s a significant return on investment that pays for itself many times over while keeping your family comfortable year-round.

Warning Signs Your Ductwork Needs Attention

Your ductwork rarely announces problems with dramatic failures. Instead, it sends subtle signals that many homeowners dismiss as normal HVAC quirks—until those small issues turn into expensive emergencies. Recognizing these warning signs early can save you thousands of dollars and prevent your family from suffering through another uncomfortable summer or winter. Watch for these five critical warning signs:

1. The Temperature Lottery: Walk through your home during a heating or cooling cycle. Does the master bedroom feel comfortable while the home office never reaches the right temperature? Do upstairs rooms stay 10 to 15 degrees warmer than downstairs in summer? These persistent hot and cold spots typically indicate ductwork problems rather than equipment failures. Possible causes include disconnected duct sections losing air in your attic, crushed flexible ducts restricting airflow, inadequate return air pathways creating pressure imbalances, or an improperly designed system that never distributed air evenly in the first place.
2. The Mysterious Energy Bill Spike: Your usage patterns haven’t changed. The weather seems typical for the season. Yet your energy bills jumped 20, 30, or even 40 percent compared to last year. This often signals new air leaks in your ductwork, deteriorating insulation allowing excessive heat transfer, or flexible ducts that have sagged or compressed over time. The HVAC system compensates for lost air by running longer cycles, driving up costs while failing to improve comfort.
3. Strange Sounds From Your System: Properly functioning ductwork operates quietly in the background. Whistling or hissing suggests air escaping through leaks or gaps. Rattling or banging indicates loose connections or sections that weren’t properly secured. Rumbling or booming sounds, especially when the system first activates, point to undersized ducts causing dramatic pressure changes. None of these represent normal operation.
4. The Dust Accumulation Problem: You clean religiously, yet dust reappears on surfaces within days. Family members experience worsening allergy symptoms. These issues suggest your ductwork is pulling in contaminated air from unconditioned spaces. Leaks in return ducts can suck in attic insulation particles, dust from crawl spaces, or outdoor pollutants. The system then circulates these contaminants throughout your living spaces repeatedly.
5. Inconsistent Airflow Between Rooms: Hold your hand in front of different supply registers during an HVAC cycle. Some blast air forcefully while others barely produce a breeze. This imbalance reveals improper duct sizing, blockages in certain branches, or dampers that were never properly adjusted during installation. Each room should receive airflow proportional to its size and heating or cooling requirements.

Quick assessment: If you’re experiencing three or more of these symptoms, your ductwork likely needs professional assessment before the problem gets worse and more expensive. Five or more strongly suggests significant problems requiring immediate attention. The good news? Catching these issues early often means simple, affordable fixes instead of complete system replacements. Don’t wait until you’re facing an emergency repair in the middle of summer or winter.

When Should You Modify or Replace Your Ductwork?

Several situations warrant evaluation and potentially significant modifications or complete replacement. Understanding these scenarios helps you make informed decisions about when to invest in ductwork improvements.

HVAC System Upgrades

You’re investing thousands in a new high-efficiency furnace and air conditioner to lower your energy bills and improve comfort. Smart move—but here’s what most contractors won’t tell you upfront: your existing ductwork was sized for your old equipment’s specifications, not your new system. Modern high-efficiency systems often require different airflow patterns to achieve their rated performance. Installing new equipment on old, improperly sized ductwork is like putting a powerful new engine in a car but keeping the old, restrictive exhaust system—you’ll never get the performance or efficiency you paid for.

Fire & Ice, an HVAC company serving Central Ohio, reports that nine out of ten system replacements require some form of ductwork modification. While Northern California contractors might see slightly different ratios, the principle remains: your ductwork and HVAC equipment form an integrated system that must work together. Without proper modifications, you’re throwing away money on efficiency you’ll never achieve.

When upgrading your HVAC system, modifications to accommodate furnace replacements and air conditioning services ensure you achieve the full efficiency potential of your new equipment—and actually see those promised energy savings on your monthly bills.

Home Additions and Renovations

That beautiful new master suite needs heating and cooling. Simply tapping into existing ductwork rarely works the way contractors suggest it will. Your original HVAC system was carefully sized for specific square footage. Adding 300 to 800 square feet changes the entire calculation—and ignoring this reality creates problems throughout your entire home.

The new spaces might receive some conditioned air, but they’re essentially stealing it from original rooms. Everyone ends up uncomfortable, your system runs constantly without keeping any room at the right temperature, and energy bills climb while comfort declines. You spent all that money on a beautiful addition only to make your entire home less comfortable. Proper additions require recalculating your home’s total load, determining whether existing equipment can handle increased demand, and designing duct pathways that deliver appropriate airflow to new spaces without compromising comfort in existing rooms.

Converting from Non-Ducted Systems

Some older Northern California homes, particularly in areas like Marin County or Napa Valley, were built with baseboard heaters or wall-mounted units. Converting these homes to central forced-air HVAC, including heat pump installations, requires complete ductwork installation from scratch.

This situation actually presents an opportunity. Without existing ductwork to work around, designers can create optimal layouts using current best practices. The challenge lies in routing ducts through completed homes without major reconstruction. Experienced contractors can often utilize existing chases, closets, and strategic soffits to minimize visual impact while maximizing performance.

Age and Deterioration

Even well-installed ductwork doesn’t last forever. Most residential systems show significant deterioration after 15 to 20 years. Seals fail, insulation compresses or falls away, flexible sections develop leaks, and connections become failure points as mastic seals dry out and crack. If you’re living in a home built in the 1970s, 1980s, or 1990s with original ductwork, you’re almost certainly losing 30 to 50 percent of your heating and cooling to leaks and inefficiency.

If your home’s ductwork dates to original construction from these decades, replacement probably makes more financial sense than extensive repairs—and will pay for itself through lower energy bills within just a few years. Modern installations achieve significantly better performance through improved materials, sealing methods, and design practices that simply didn’t exist when your home was built.

Understanding the Costs

Ductwork modification costs vary dramatically based on scope and complexity. Minor modifications like replacing or upsizing a return air drop typically run 300 to 600 dollars including labor. These relatively simple projects can dramatically improve system performance when return air restrictions cause problems.

Moderate modifications involving main trunk line replacement range from 1,200 to 2,500 dollars depending on accessibility and length. This work often accompanies major HVAC equipment upgrades.

Complete new ductwork throughout an average home—1,500 to 2,000 square feet—typically costs 4,000 to 8,000 dollars. Larger homes, complex layouts, or difficult access can push costs toward 10,000 to 15,000 dollars.

These investments should be weighed against the alternative. Continuing with inadequate ductwork means perpetual discomfort, 20 to 40 percent energy waste, and potential premature equipment failure. For many homeowners, monthly energy savings and comfort improvements justify modification costs within 5 to 8 years.

Ductwork Maintenance That Actually Matters

Properly maintained ductwork delivers decades of reliable service and keeps your energy bills under control. Neglected ductwork creates progressively worsening problems that eventually require expensive intervention—usually at the worst possible time. The good news? A few simple maintenance tasks can prevent most major issues and extend your system’s lifespan significantly.

What Homeowners Can Do

Filter Management

Filter management represents the single most important maintenance task. Clogged filters restrict airflow, forcing your system to work harder while allowing more particles to bypass the filter and accumulate in ducts. Most residential systems need filter changes every 30 to 90 days depending on filter type, household size, pets, and local air quality. Homes with dogs or cats typically require monthly changes.

Register and Vent Maintenance

Keep your airflow pathways clear with these simple practices:

• Keep supply registers and return vents unobstructed by furniture or curtains
• Vacuum registers monthly to prevent dust buildup
• Ensure all registers remain open even in unused rooms—closing vents doesn’t save energy but creates pressure imbalances that reduce efficiency

Visual Inspection Checklist

If you can safely access your attic or crawl space, perform quarterly visual checks looking for:

• Disconnected duct sections
• Sagging flexible ducts that need additional support
• Visible holes or tears in ductwork
• Deteriorating insulation
• Evidence of pest activity
• Moisture or condensation indicating problems

Professional Services Worth Considering

Professional duct sealing addresses leaks and gaps that waste 20 to 40 percent of conditioned air in typical systems. Contractors use mastic sealant or specialized tapes—not standard duct tape, which deteriorates quickly—to seal all connections and visible gaps. Some companies offer Aeroseal technology that seals leaks from the inside by blowing adhesive particles through the duct system, reaching inaccessible leaks in walls and hidden areas.

Ducts running through unconditioned spaces need proper insulation. According to the U.S. Department of Energy, insulation with an R-value of at least R-6 for supply ducts is recommended, with R-8 appropriate for extreme climates. Northern California attics can exceed 150 degrees Fahrenheit in summer, making proper insulation critical for maintaining air temperature during transit.

The U.S. Environmental Protection Agency recommends professional duct cleaning services only when specific problems occur: substantial visible mold growth, vermin infestation with droppings or nesting materials, or excessive dust and debris releasing particles into living spaces. Routine cleaning every few years provides limited benefit for most homes.

When cleaning becomes necessary, choose contractors who follow National Air Duct Cleaners Association standards and use source removal methods that physically remove contaminants rather than simply applying chemical treatments.

Northern California Climate Considerations

Northern California’s unique climate creates specific ductwork challenges that differ from national averages—and that many contractors from other regions don’t fully understand. If your ductwork wasn’t designed with these regional factors in mind, you’re likely paying far more than necessary for heating and cooling.

Extreme Attic Temperatures

While the region enjoys mild winters, summer attic temperatures tell a different story. Unshaded roofs in direct sun can push attic temperatures above 150 degrees Fahrenheit during July and August heat waves. Ductwork running through these superheated spaces loses significant energy even with standard insulation.

Homes in the region face specific challenges:

• Temperature extremes: Unshaded roofs in direct sun push attic temperatures above 150 degrees Fahrenheit during July and August heat waves
• Energy loss: Cool air traveling through superheated environments warms noticeably before reaching living spaces
• Extended cooling season: Air conditioners work harder and longer to compensate for this heat transfer

Homes in the region particularly benefit from R-8 insulation on attic ductwork rather than the minimum R-6 standard. The additional investment pays back quickly through reduced cooling costs during the extended warm season.

Wildfire Smoke and Air Quality

Recent years brought increased attention to wildfire smoke impacts on indoor air quality—a reality every Northern California homeowner now faces during fire season. Properly sealed ductwork plays a crucial role in protecting your family’s health during smoke events. Leaky return ducts can pull contaminated outdoor air into your system, circulating smoke particles throughout your home despite closed windows and doors. Your family breathes those particles for days or weeks, with potential health consequences that extend far beyond the immediate discomfort.

Homes with well-sealed ductwork combined with high-quality indoor air quality systems create positive pressure that prevents outdoor air infiltration. During significant smoke events, this sealing becomes a health issue beyond just efficiency considerations. Professional duct sealing with MERV 13 or higher filtration provides meaningful protection for respiratory health—something every Northern California homeowner should prioritize given our new reality of annual fire seasons. Learn more about protecting your home from wildfire smoke through proper ductwork sealing and filtration.

Cooling-Dominant Usage Patterns

Many Northern California locations require substantially more cooling than heating annually. This usage pattern means your ductwork spends more time moving cool air than warm air—and every inefficiency costs you money during those long, hot summers. The temperature differential between conditioned air and ambient attic temperatures during summer often exceeds the differential during winter, making summer efficiency even more critical to your comfort and budget.

When planning ductwork modifications or replacements, discuss this usage pattern with contractors who understand Northern California’s climate. Design choices that optimize cooling efficiency should take priority over heating optimization, contrary to recommendations appropriate for colder climates. A contractor who doesn’t account for this regional difference isn’t designing the right system for your home.

Finding Professional Ductwork Services in Northern California

Not all HVAC companies offer the same level of expertise in ductwork services. Finding qualified contractors requires knowing what questions to ask and what certifications to verify.

What to Look For

Certifications matter. Look for contractors whose technicians hold NATE certification, demonstrating proven knowledge of HVAC systems including ductwork. Companies should readily provide license numbers and insurance verification. Ask specifically about their experience with Manual J load calculations and Manual D duct design—contractors who don’t perform these regularly may not deliver optimal results.

Request detailed assessments before work begins. Professional contractors should measure airflow at each register, perform blower door tests to identify leaks, provide written calculations showing proposed duct sizing, and explain exactly what work they recommend and why. Companies that provide vague estimates without thorough evaluation often deliver suboptimal results.

Finding Professional Ductwork Services in Northern California

Not all HVAC companies offer the same level of expertise in ductwork services. Finding qualified contractors requires knowing what questions to ask and what certifications to verify.

What to Look For

Certifications matter. Look for contractors whose technicians hold NATE certification, demonstrating proven knowledge of HVAC systems including ductwork. Companies should readily provide license numbers and insurance verification. Ask specifically about their experience with Manual J load calculations and Manual D duct design—contractors who don’t perform these regularly may not deliver optimal results.

Request detailed assessments before work begins. Professional contractors should measure airflow at each register, perform blower door tests to identify leaks, provide written calculations showing proposed duct sizing, and explain exactly what work they recommend and why. Companies that provide vague estimates without thorough evaluation often deliver suboptimal results.

Bellows: Northern California Ductwork Specialists

Bellows Plumbing, Heating, Cooling & Electrical brings decades of experience to residential ductwork challenges throughout Northern California. Their NATE-certified technicians understand the regional climate factors that affect ductwork performance, from extreme summer attic temperatures to wildfire smoke concerns.

Services include comprehensive ductwork assessment using professional diagnostic equipment, custom duct design following Manual J and Manual D standards, professional installation of new ductwork systems, modifications to accommodate HVAC system upgrades, sealing and insulation improvements for existing systems, and integration with heat pump installations and zoned comfort solutions.

The Bellows team serves communities throughout Northern California including Marin County, Sonoma County, Napa County, Santa Clara County, and Santa Cruz County. Their technicians arrive equipped to handle ductwork challenges in homes ranging from historic Victorian properties to modern construction.

Whether you’re experiencing comfort problems, noticing higher energy bills, or planning HVAC improvements, professional ductwork evaluation provides answers. Small modifications often deliver dramatic improvements in comfort and costs.

Understanding residential ductwork transforms you from a passive homeowner into an informed consumer who recognizes problems early and makes smart decisions about solutions. Your ductwork might hide behind walls and above ceilings, but its impact on comfort, health, and energy costs remains undeniable.
