Bradford White Heat Pump Water Heater Case Study

Project Summary

Project Type

Bradford White Heat Pump Water Heater Install

Location

Santa Cruz, California

Duration

1 day install completed by 2 plumbing installers and 1 electrician.

Services Provided

Replace Water Heater
Gas to Electric Water Heater Conversion

The Challenge

A homeowner in Santa Cruz needed to replace their aging gas water heater in the garage. With growing interest in electrification and energy efficiency, they chose to upgrade to a modern heat pump water heater system, which required converting from gas to electric power.

The Solution

Our team installed a 50-gallon Bradford White AeroTherm Heat Pump Electric Water Heater, completing a full conversion from gas to electric in a single day. The installation required coordinating plumbing and electrical work to ensure code compliance and optimal performance.

Project Scope & Key Components

Equipement Installed:
- Bradford White AeroTherm 50-Gallon Heat Pump Electric Water Heater

Installation Process

Our comprehensive installation included:

Preparation & Removal

Secured all required permits

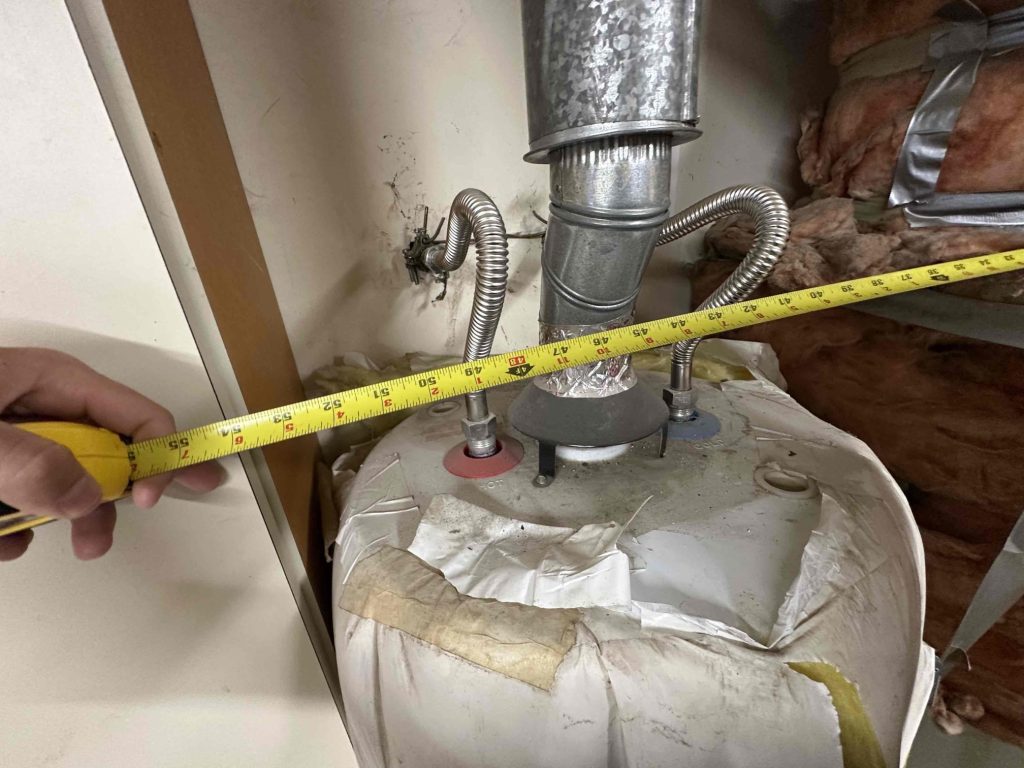

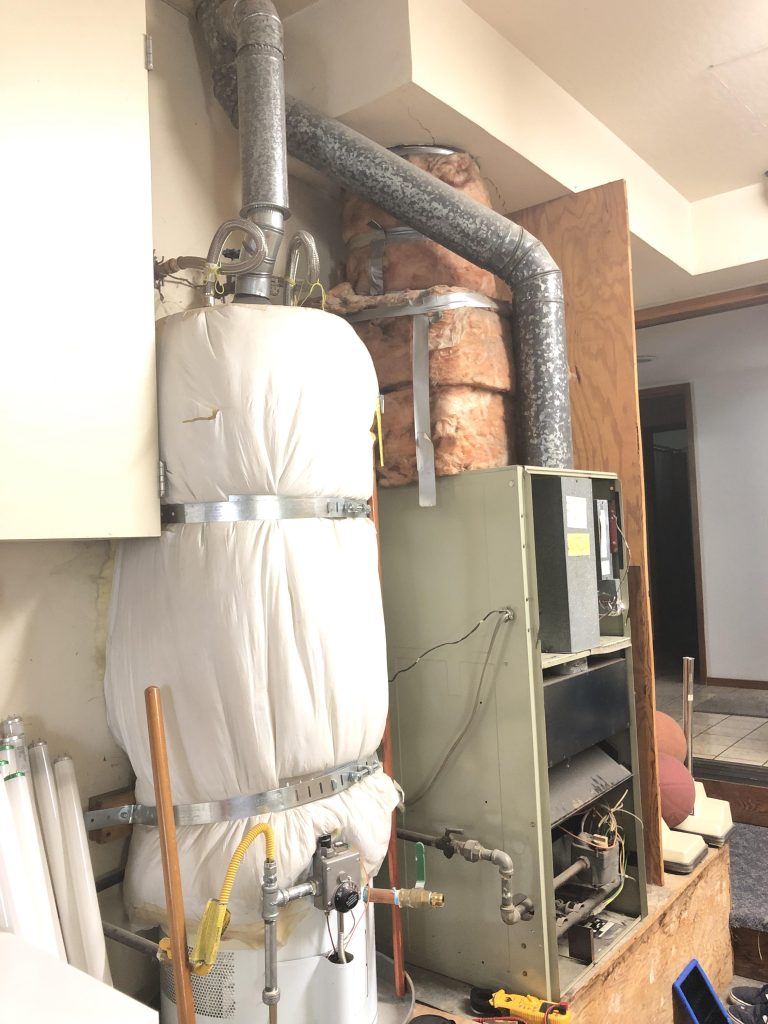

Drained, disconnected, and hauled away old gas water heater for recycling
Capped existing gas line
Shut off water supply at existing valve

New System Installation

Installed new heat pump water heater in existing location
Installed water heater pan with exterior drain line
Installed seismic blocking behind unit
Secured water heater with new seismic straps per code requirements

Plumbing Connections

Installed thermostatic mixing valve for temperature control

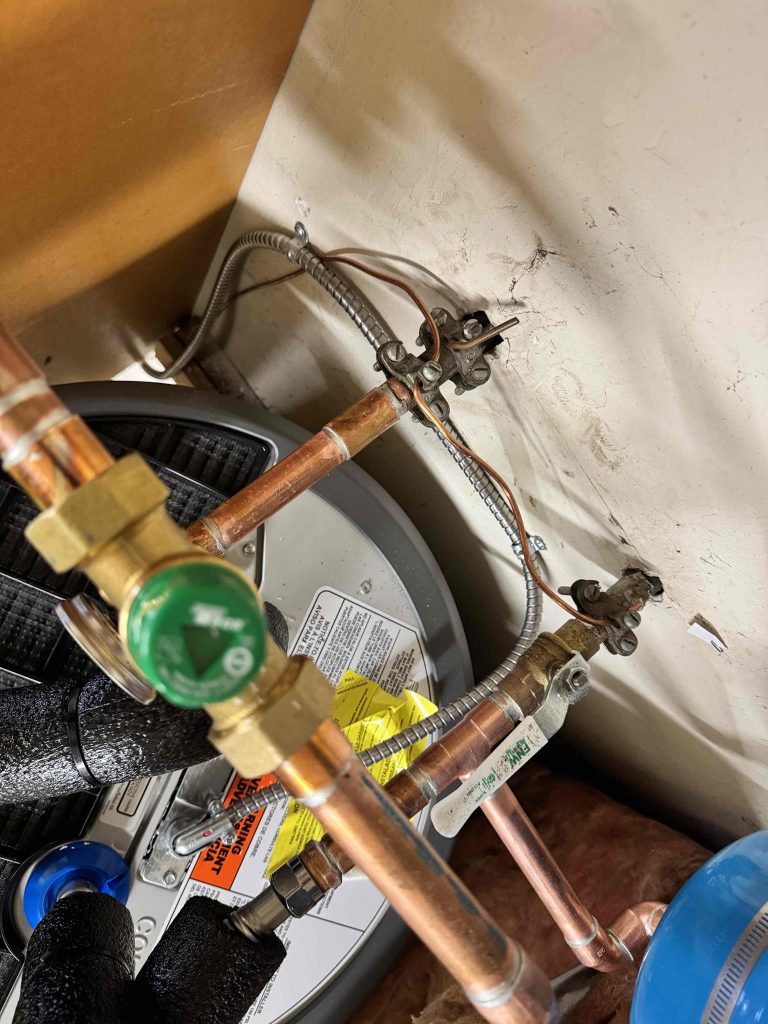

Connected new hot and cold water supply hoses
Installed temperature and pressure relief valve tied to existing drain line
Ran condensate drain line to exterior

Electrical Work

Re-purposed nearby existing dedicated 30-amp dryer circuit
Extended electrical connection to new unit per code

Testing & Commissioning

Filled water heater and activated system
Calibrated temperature settings
Bled air from all lines
Tested for proper performance and safety
Cleaned up and removed all job debris

The Results

The homeowner now enjoys reliable hot water with significantly lower operating costs thanks to heat pump technology. The electric system eliminates gas combustion concerns and qualifies for potential utility rebates and tax incentives. Completed in just one day, this efficient conversion demonstrates our commitment to quality workmanship and customer satisfaction.

Photo Highlights

Our team completed this gas-to-electric water heater conversion in a single day with careful coordination between plumbing and electrical work. After securing permits and removing the old gas water heater, we capped the gas line and prepared the garage location with proper seismic blocking, straps, and a safety pan with exterior drainage. The new 50-gallon Bradford White AeroTherm heat pump unit was installed in the existing location, with all new water supply connections, a thermostatic mixing valve for temperature control, and proper condensate drainage to the exterior. Our electrician repurposed the nearby 30-amp dryer circuit and extended it to power the new unit according to code requirements. The installation was completed with thorough testing, temperature calibration, and air bleeding to ensure optimal performance and reliability for years to come.

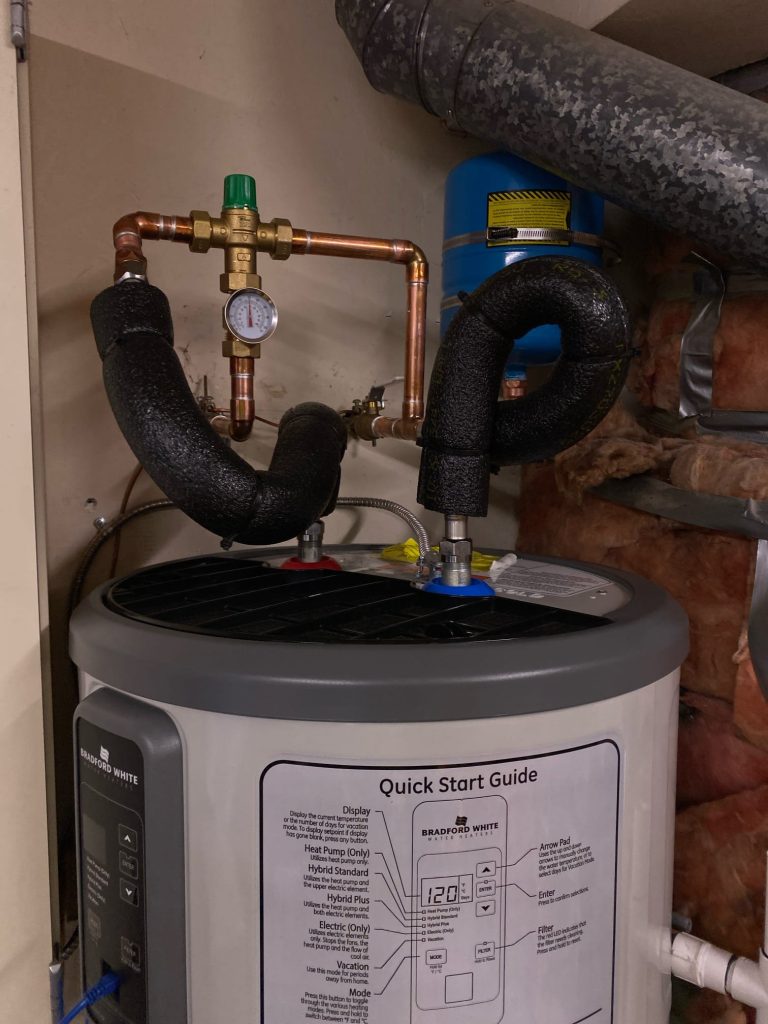

Thermostatic Mixer for Water Heater Replacement

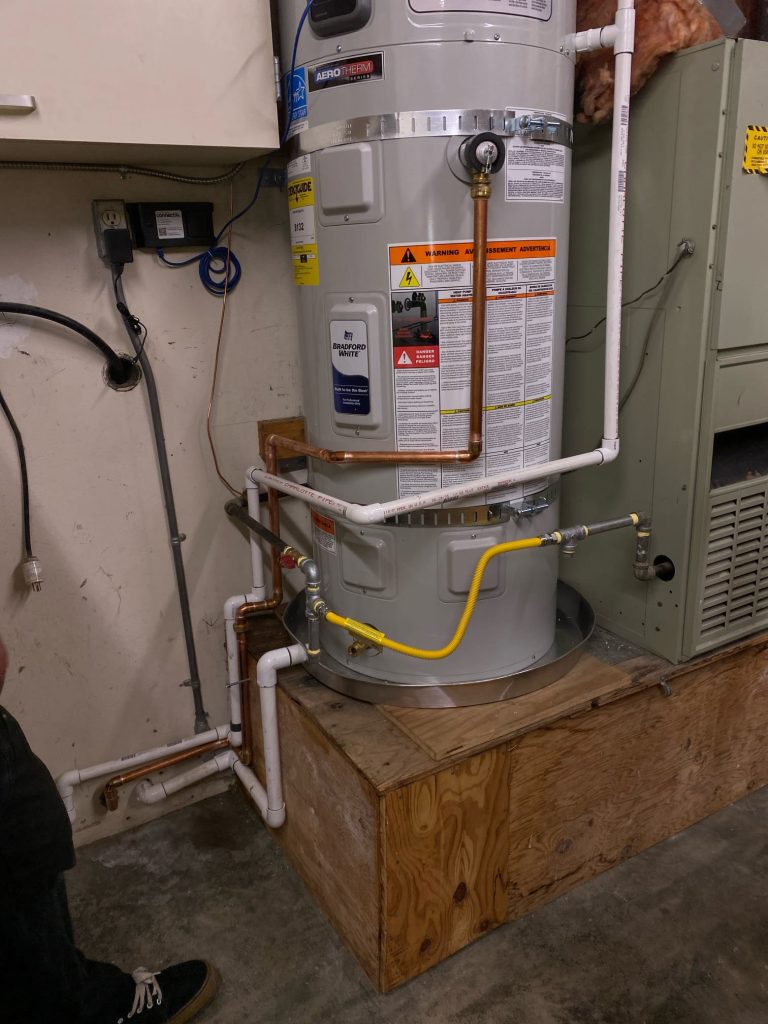

Water Heater Installed on a Wooden Platform

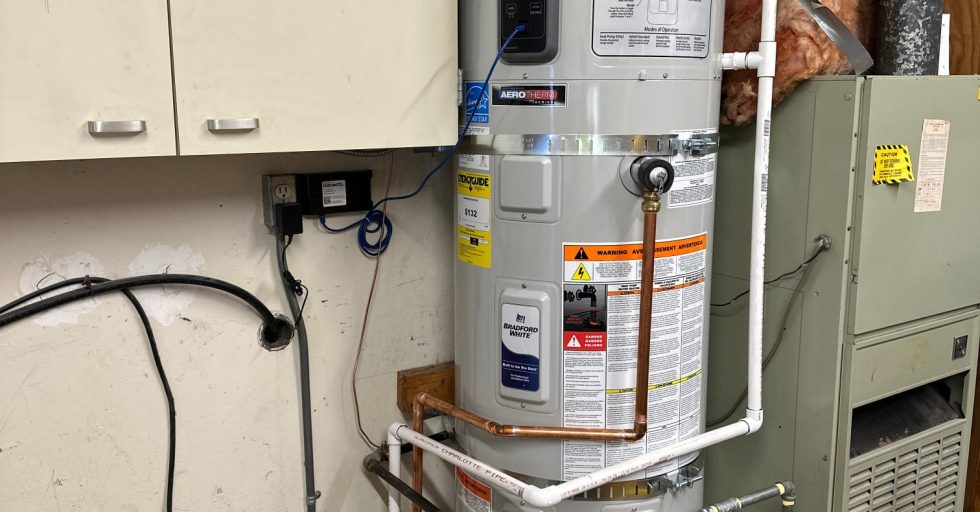

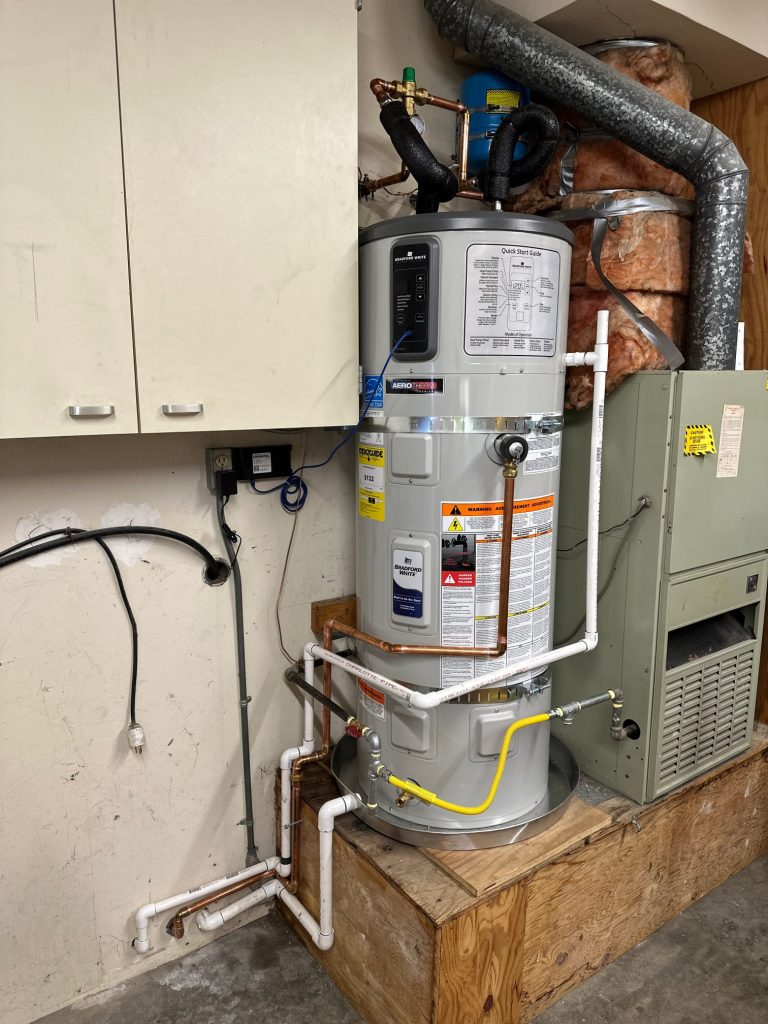

Bradford White Heat Pump Water Heater Installation

System Benefits & performance Impact

The conversion from gas to electric heat pump technology delivers substantial energy savings, with the Bradford White AeroTherm operating up to three times more efficiently than conventional electric water heaters and significantly outperforming old gas units. Homeowners benefit from lower monthly utility bills while eliminating combustion-related safety concerns such as gas leaks, carbon monoxide risks, and pilot light maintenance. This eco-friendly upgrade reduces the home’s carbon footprint by eliminating direct fossil fuel consumption and qualifies for valuable utility rebates and federal tax incentives that help offset installation costs. The heat pump system provides consistent, reliable hot water performance while the professionally installed seismic straps, mixing valve, and proper drainage ensure long-term safety and code compliance. Completing the entire conversion in just one day with minimal disruption demonstrates our commitment to efficient, high-quality service that modernizes your home’s infrastructure for a cleaner energy future.
